Commissioning
Introduction
At power on, the device displays a configuration wizard, the QUICK SETUP, for a fast setup of the main parameters.
QUICK SETUP menu
This procedure is available when the instrument is switched on for the first time.

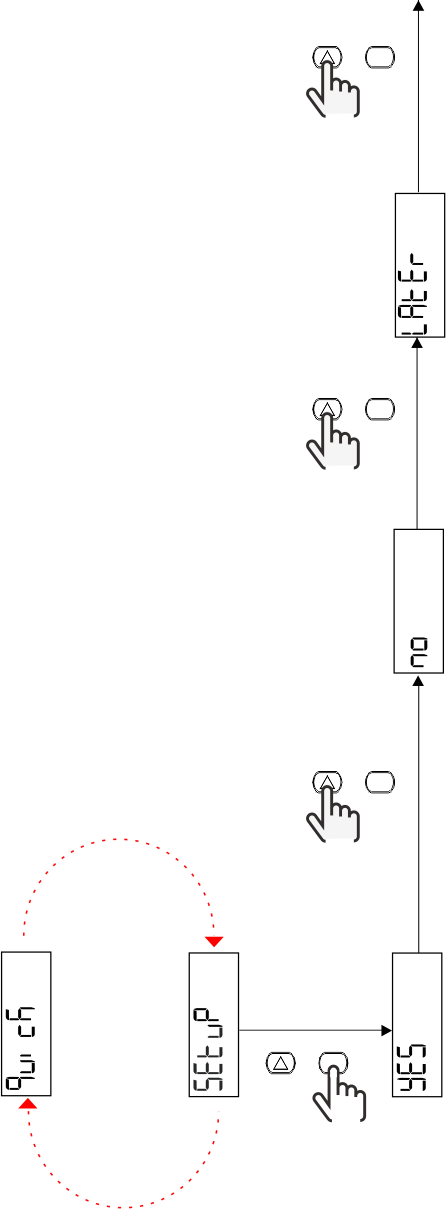

In the “QUICK SETUP?” starting page
|
Select... |
To... |
|---|---|
|
Go |
run the QUICK SETUP procedure |
|
no |
skip the procedure and no longer display the QUICK SETUP menu |
|
LAtEr |
skip the procedure and display the QUICK SETUP menu at the next switch-on |
Note: the available parameters depend on the model.
S1 models

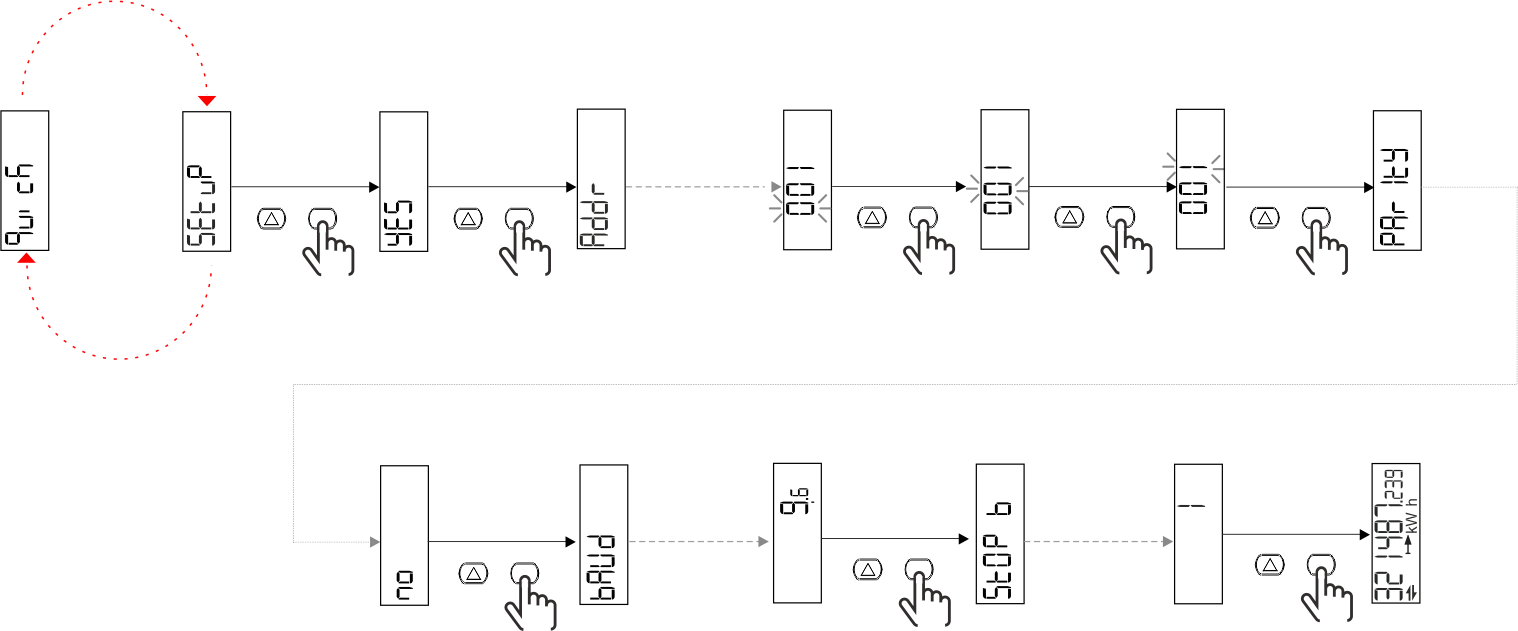

Example 1: confirmation

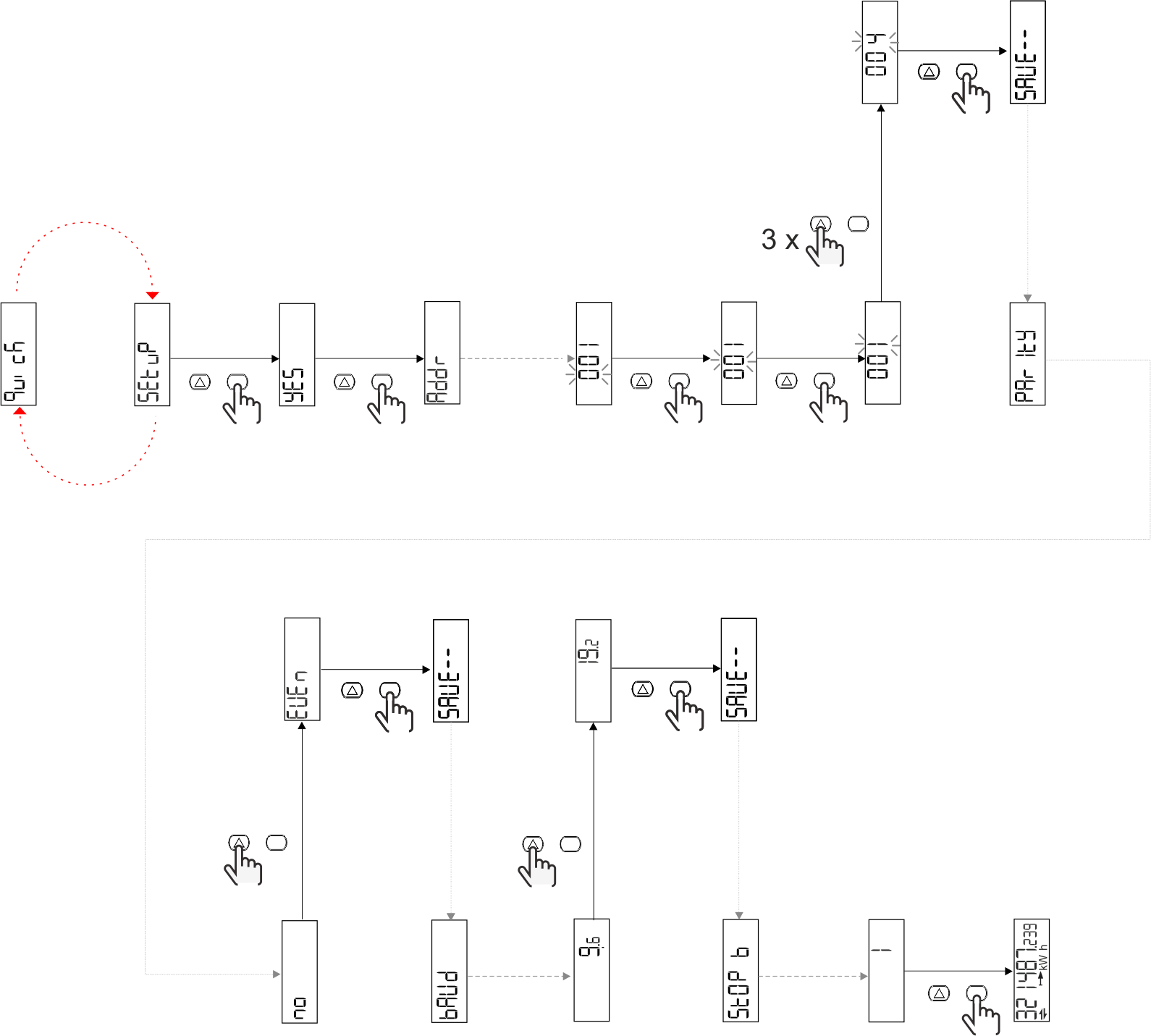

Example 2: modification (address 4, parity EVEN, baudrate 19.2 kbps)
M1 models

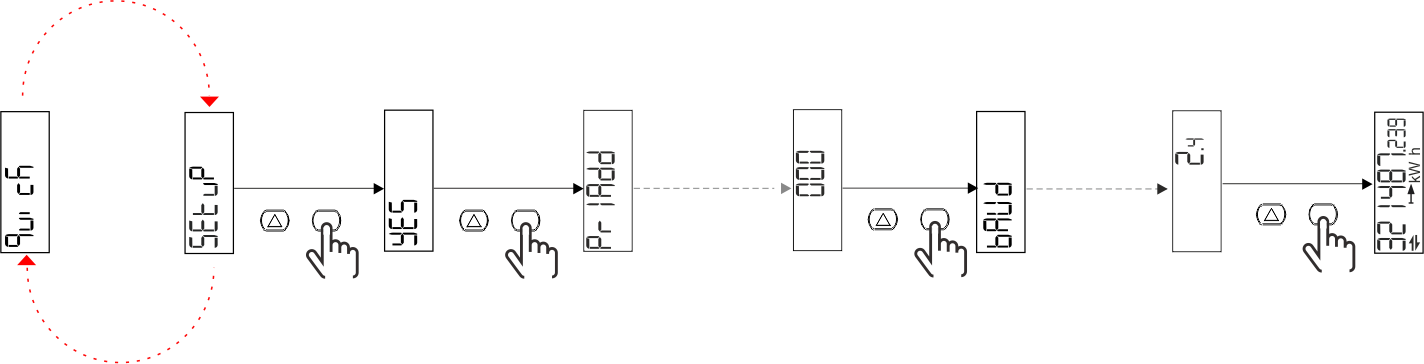

Example 1: confirmation

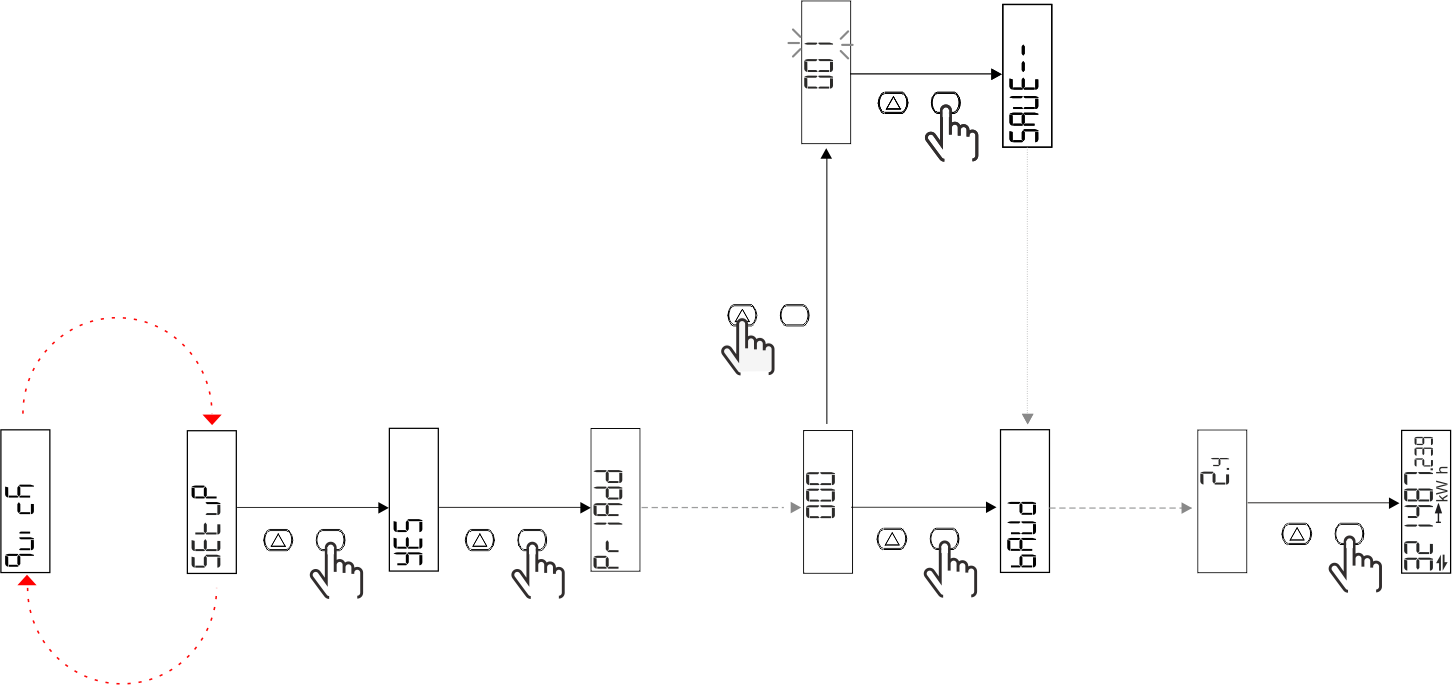

Example 2: modification (primary address 1)
O1 models

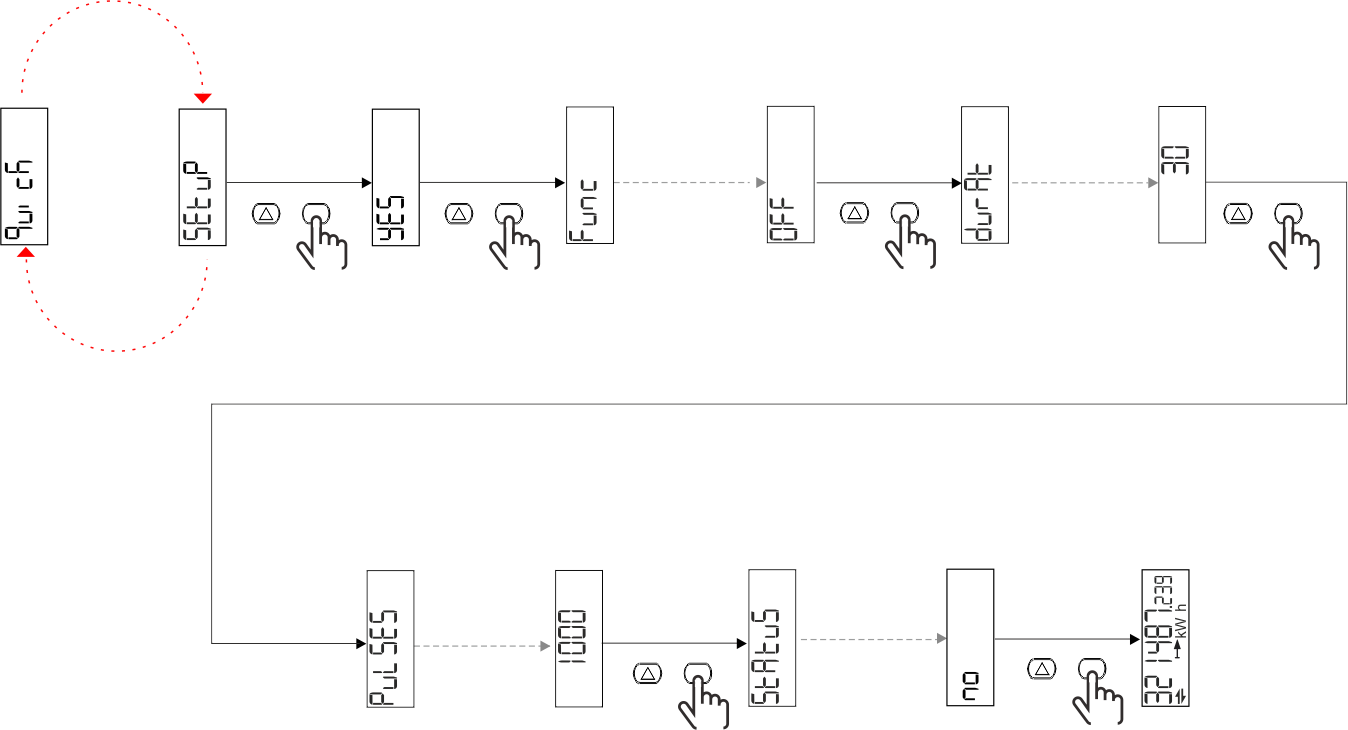

Example 1: confirmation

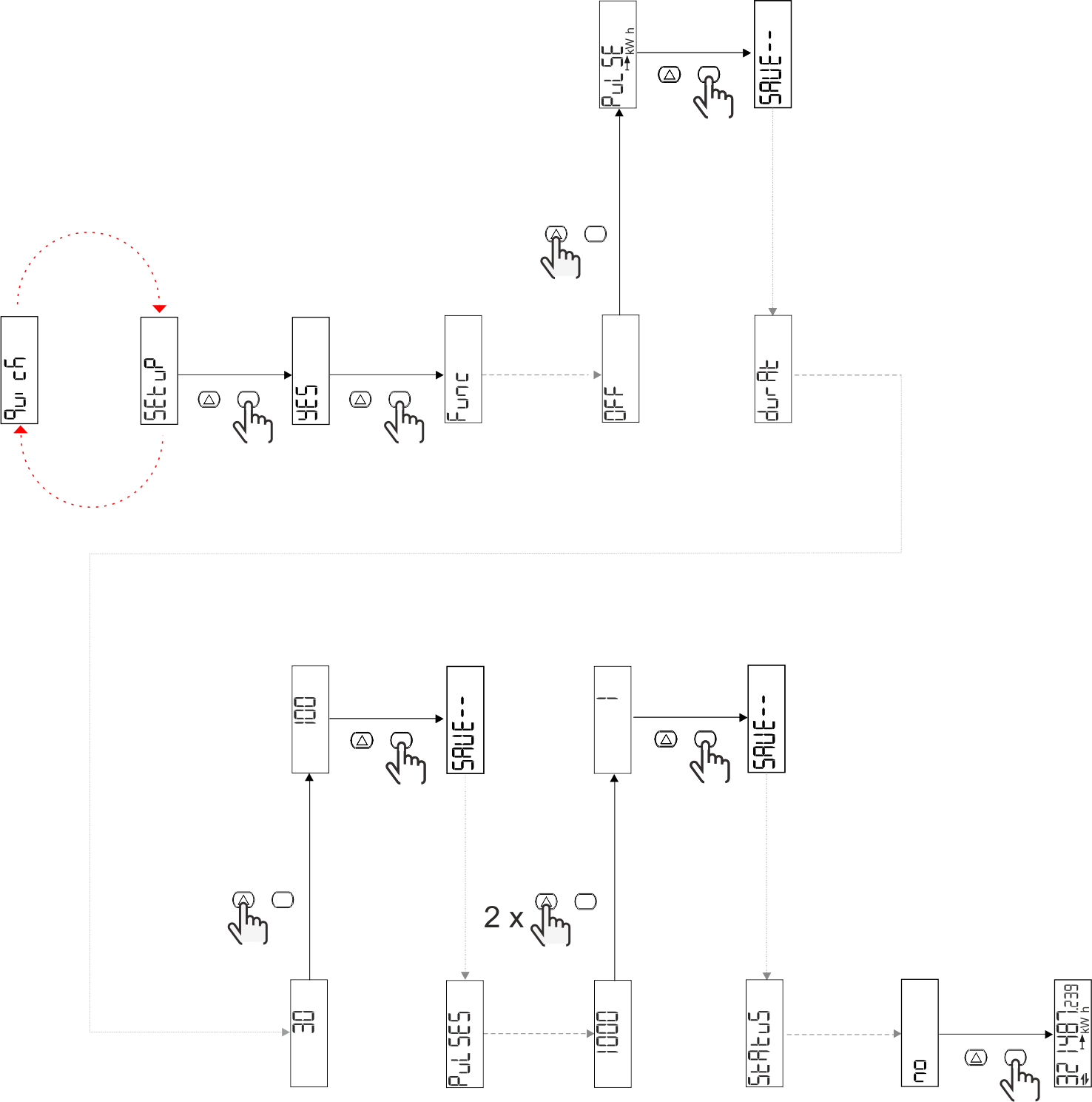

Example 2: modification (pulse kWh+, duration 100 ms, 10 pulses/kWh)
